Technical parameter
Measuring range: 0.3-150m
Process connection: flange >dn80
Process temperature: -40-200 ℃
Process pressure: -0.1-0.3mpa
Antenna material: PTFE
Accuracy: ± 5mm
Protection grade: IP67
Center frequency: 80GHz
Emission angle: 3 °
Housing: aluminum / stainless steel
Feature description
1. The measurement accuracy can reach ± 5mm, and the minimum blind area is 0.05m.
2. Smaller antenna size to meet more working conditions.
3. It has stronger penetrability and can be used normally in case of adhesion and condensation.
4. The radar response time is less than 1s.
5. Easy installation and stable measurement.

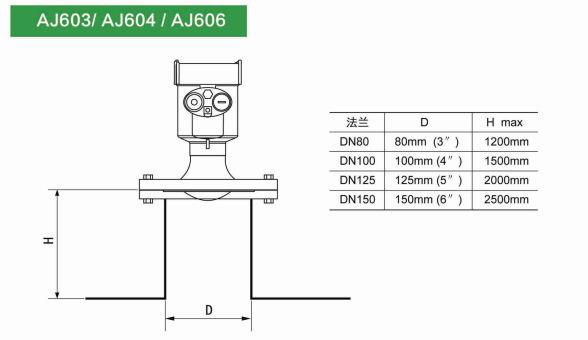

Drawing
Purpose / application field
It is widely used in petroleum, chemical industry, electric power, metallurgy, environmental protection, medicine, papermaking and other industries. The company's products are widely used in large enterprises and key projects in many countries.
