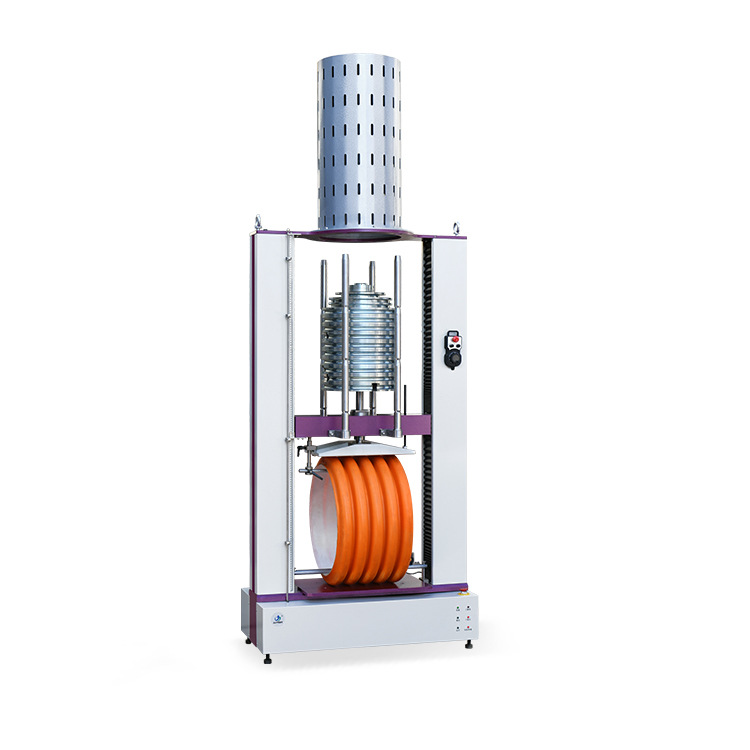

JJXGR dual mode pipe creep ratio testing machine

 The dual-mode pipe creep ratio testing machine is mainly used for the determination of the creep ratio of thermoplastic pipes. The instrument also has a dual-mode measurement and control system of full mechanical loading and full electronic control loading, which has the characteristics of long-term stability and convenient and flexible operation.

Standards compliant

GB/T 18042-2000

Features

1. Support full mechanical loading mode

①Using weights to achieve full-load static loading, no risk of power failure, and long-term stability;

② Unique weight loading structure, there is no intermediate link for force value loading, any combination of 1kg~500kg weights, the loading accuracy can be better than ±0.5%.

2. Support full electronic control loading mode

① The servo control system is used to realize electronically controlled loading, which has excellent long-term constant load control capability;

② The whole process of preload loading, full load loading and long-term constant load can be started with one key, and it is fully automatic.

3. Electromechanical hybrid collaborative control

① Electronic control mode to achieve prestress control;

② The electronically controlled loading method can efficiently predict the full load of the test;

③ Through the electronic control auxiliary loading, the automatic control of the full load loading of the weights within 20s~30s is realized without human intervention.

4. Precise control

① It is equipped with a high-precision transmission structure of high-precision servo control system + precision grinding ball screw + precision planetary reducer to achieve high-precision control of the electronically controlled loading system.

5. Smart Sensing

① The digital design of sensors supports intelligent exchange between sensors;

② Using sensor identification technology, sensors can be plugged at will, and automatically configured;

③ Imported high-quality sensors, high data acquisition accuracy and good stability.

6. Efficient and convenient

① The beam is used as the weight loading and unloading device, which is safe and convenient to operate;

② One-key start, which can realize the whole process control of loading;

③ Using electronic digital handwheel to realize beam movement, the speed can be arbitrary;

④Intelligent prediction and fixed value of full load loading, the loading success rate is over 95%, intelligent and efficient.

7. Safe and reliable

① The multi-stage segmented weight protection rod is adopted to implement all-round protection for the weight loading and unloading process and test process to meet the safety production requirements;

② With limit, overheating, overcurrent, overvoltage and other electronic safety protection.

8. Rich software functions

① Support three-station synchronous test, automatically record test characteristic data;

② With power-off data protection function, improve data security;

③ The R value is automatically calculated and analyzed from time to time, the test is terminated in time and the test result is automatically calculated;

④ Support to display a variety of curves, which can be switched flexibly;

⑤The test data and images can be exported separately, which is convenient for data analysis and processing;

⑥Able to export test reports in various formats and edit them flexibly.
